| Quantity: | |
|---|---|
1200 x 2400/2700mm x 6/9/12/15/17/19/25mm
HC
4412330090
Structural & Non-Structural Plywood
The range of Structural and Non-Structural plywood includes:
lCD Structural Plywood
lCD Non-Structural Plywood
lBrace Ply
lCD TONGUE & GROOVE FLOORING
HongCheng Structural Plywood has been manufactured at our plant in China, for in excess of 15 years and has been used successfully in Australia and New Zealand. For domestic and light commercial structural and decorative applications HongCheng manufactures structural plywood in a range of widths, lengths, thickness and grades to AS/NZS2269 from New Zealand and Russia soured plantation Radiata Pine and Larch Pine.
HongCheng have benchmark certificate according to AS/NZS 2269 standard for Structural plywood. We are always focus on high quality product to our customer
lStructural plywood is for use in all permanent structural and engineered applications.
lA Bond is durable and permanent under conditions of full weather exposure and long term stress.
lStructural plywood should be preservative treated to ensure it lasts its full service life as it is manufactured from a range of hardwood and softwood timber species.
lFor termite and rot resistance, plywood can be treated to H2 standards.
CD Grade Structural Plywood
Superior Strength Exterior Plywood
Pine structural plywood and Hardwood structural plywood are both manufactured based on AS/NZS 2269 using a phenolic “A” bond resin bonding the individual timber veneers.
This exterior grade plywood has known and consistent structural performance and the design properties are published in the Timber Structures Code AS1720.1 & is certified by the Engineered Wood Products Association of Australasia (EWPAA) as compliant for Structural Plywood.
When structural plywood is to be continually exposed to the weather, H2 preservative treatment against fungal and termite attack is recommended.

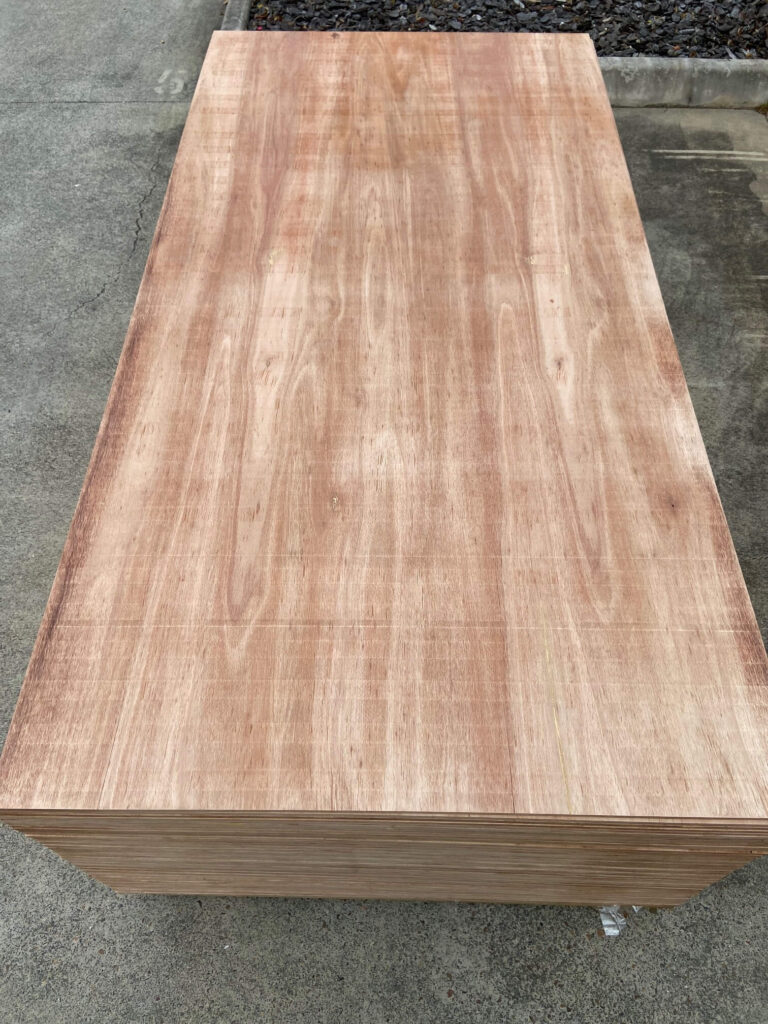

Specifications – Hardwood
AS/NZS 2269 F11/F14/F17 A-BOND SUPER E0
Veneer Grade
“C” grade face “D” grade back
Dimensions:
2400mm x 1200mm
Thicknesses:
9mm, 12, 15, 17, 19, 21 & 25mm
Species:
Selected Hardwoods
Density:
625-725 kg/m3 approx

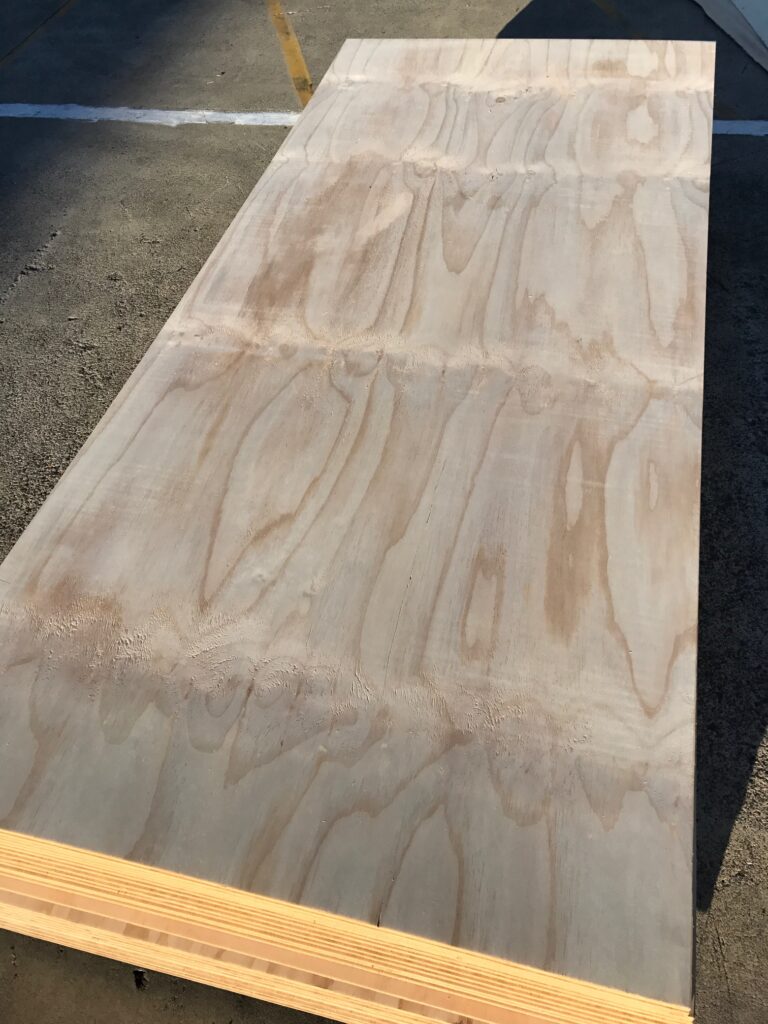

Specifications – Radiata Pine (NZ Made)
AS/NZS 2269 F8/F11 A-BOND SUPER E0
Veneer Grades:
“C” grade face “D” grade back
Dimensions:
2400mm x 1200mm
Thicknesses:
7mm, 9, 12, 15, 17, 19, 21 & 25mm
Species:
Radiata Pine
Density:
525 kg/m3 approx
CD Grade Non-Structural Plywood
A versatile product that is manufactured from sustained yield forest estates (renewable source plantation pine) for building applications where structural properties are not specified.
Suitable applications include the home improvement market, temporary weather proofing, hoardings, formwork for driveways & paths and beneath flooring.
Specifications
MR, MELAMINE, WBP
Veneer Grades:
“C” grade face “D” grade back
Dimensions:
2400mm x 1200mm
Thicknesses:
5mm, 7, 9, 12, 15, 17, 18, 19 & 25mm
Species:
Popular, Pine, Eucalyptus
Density:
525 kg/m3 approx

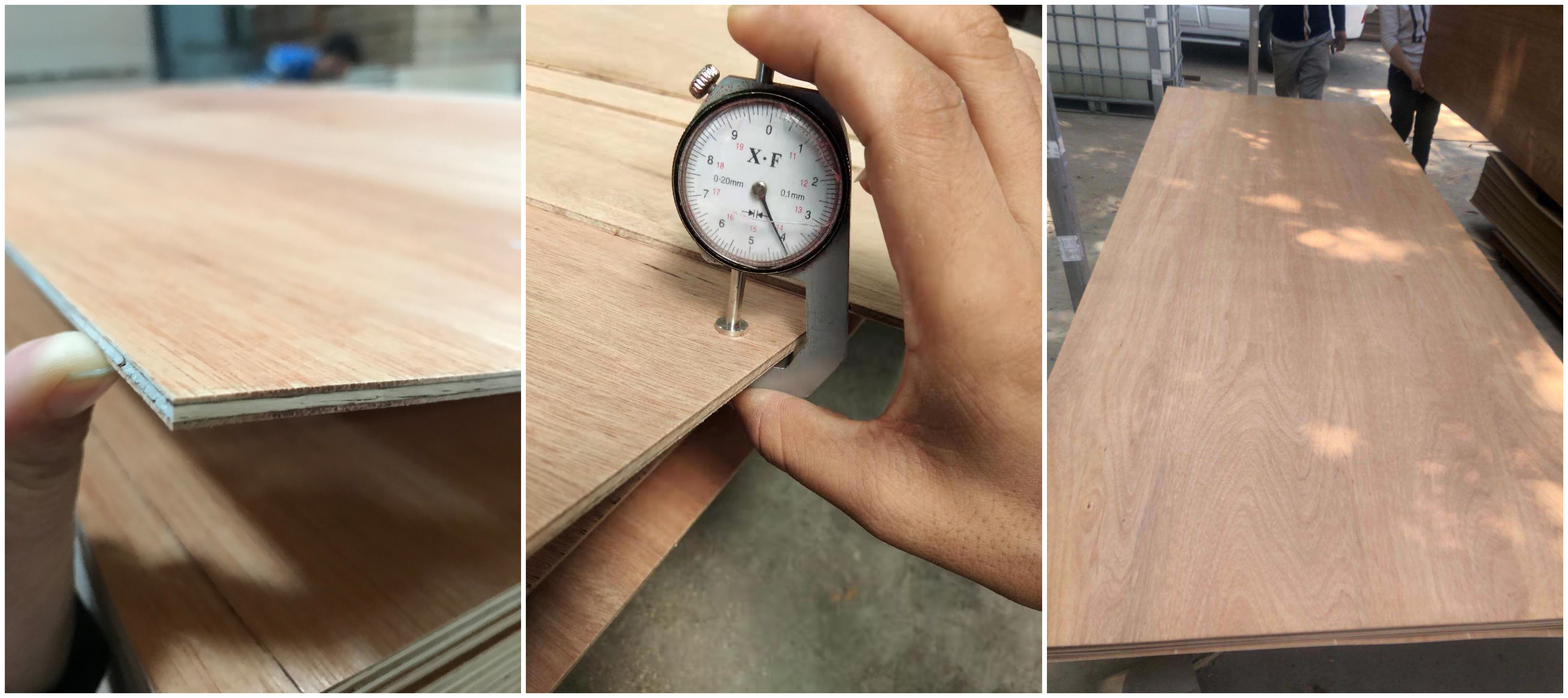

Brace Ply
Used for structural bracing, F22 Hardwood Bracing plywood is available for use for structural bracing applications. Available in 6different sheet sizes in 4mm.
Brace ply is regularly used in applications such as the backing of cabinets, linings of a garage, and bracing in construction for both load bearing walls and roofs.
The plywood is sourced from resources that have been legally harvested and comply with AS2269 for the A-Bond Phenolic glue bond.
| Description | Grade | Application | Thickness | Length x Width |
| Plywood Bracing is an imported hardwood product which is made especially for the structural bracing of houses. It is made with an 'A' bond glue line. Available in treated H2 LOSP. *F22 is supplied untreated. Standard: AS/NZS 2269 Packing: 200pcs/pallets | F22* | Wall bracing Roof bracing Sub floors | 4mm | 2440 x 1200 2440 x 900 2745 x 12002745 x 900 3050 x 1200 3050 x 900 |
CD TONGUE & GROOVE FLOORING
CD grade structural tongue and groove plywood is designed for use as a flooring substrate. Certified under the Benchmark product certification scheme, CD T&G is an E0 panel with a stress grade of F8/F11.
CD T&G flooring is engineered to withstand concentrated loads and is ideal for commercial, industrial or residential installations. This flooring can be treated to H2 preservative levels, on request for protection against termites and environmental degradation. With a high strength to stiffness ratio, CD T&G is also suitable for truck floors, suspended floors or mezzanine structures and sporting facilities flooring.
Description | Grade | Application | Thickness | Length x Width |
CD TONGUE & GROOVE FLOORING PLY Eucalyptus core Radiata pine face C/D grade A-Bond Super E0 Standard: AS/NZS 2269:2012 thickness tolerance +/-0.5mm | F8/F11 | Transportable Buildings Suspended Floors Sporting Facilities Residential Flooring Mezzanine Levels Truck Bodies Commercial Flooring Industrial Flooring | 12mm 15mm 17mm 19mm | 2400x1200mm 2700x1200mm |
