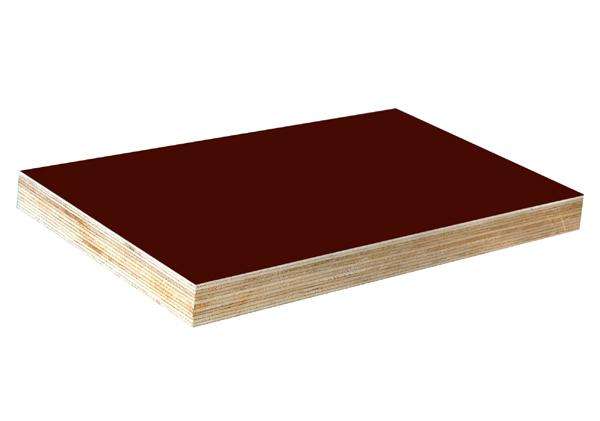

Film Faced Plywood

Availability:

Quantity:



Inquire Add to Basket

Product Description

Goods: Film faced Plywood
Specifications:
Size: 1220x2400mm, 1250x2500mm
Thickness: 4mm-25mm
Glue: MR, WBP, Melamine
Core: Hardwood, poplar or combined and so on.
Film: Black film/brown film
resued time: about 18 times

ECONOMICAL GRADE

No.	property		Unit	Test Method	Test Value	result
1	Moisture content		%	EN322	8.4	Check out
2	Density		Kg/m3	EN323	550	Check out
3	Bonding quality	Bonding quality	Mpa	EN314	Max.:1.40 Min:0.70	Check out
3	Bonding quality	Damage rate	%	EN314	74%	Check out
4	Bending Moudulus of Elasticity	Longitudinal	Mpa	EN310	5215	Check out
4	Bending Moudulus of Elasticity	Lateral	Mpa	EN310	4796	Check out
5	Modulus of Rupture	Longitudinal	Mpa	EN310	53.55	Check out
5	Modulus of Rupture	Lateral	Mpa	EN310	43.68	Check out
6	Recycle life	About 18 repeated using times according to projects by formwork applications

Film faced plywood advantage:

If put in boiling water for 48hours, it is still glue-sticking and non-deformed
Physical mood is better than iron moulds and can satisfy the requirements of constructing mould. The iron ones are easy to be deformed and can hardly recover its smoothness even after repairing.
If used abide by the illustrations strictly, it can be reused more than 50 times.
Reducing the cost greatly and avoiding the disadvantages from(rustily and erosive of iron mould)
Solves the problems of leaking and rough surface during constructing process
Particularly suitable for watering concrete project, can make the concrete surface smooth and flat
Realizing a higher economic profits

Save cost

Be special for phenolic glue and film	The film faced plywood can be disassembled and used repeatedly for both faces, saving 25% of the cost
Optimization for the special grade of core
Be special for adhesive

Shorten Duration

Excellent effect of demoulding	Shorten 30% of the duration
Avoid the reconstruction of the wall
Be easy to incise and blend

The high quality of casting

The flat and smooth faces	The faces are flat and smooth, avoiding bleeding out remains of bubbles and concrete.
The structure of waterproof and breathability
The edges are polished carefully

Packing and loading:

Container type	pallets	volume	Gross weight	Net weight
20GP	8pallets	21CBM	13000KGS	12500KGS
40GP	16pallets	42CBM	25000KGS	24500KGS
40HQ	18pallets	53CBM	28000KGS	27500KGS

Film faced plywood Applications:

Film faced plywood used popularly as shuttering panel or formwork panel for building.
And scaffolding board or trailer flooring board in Europe
The flower cart board film faced plywood are specially used in market of Netherlands/Holland or Denmark

film faced plywood formply shuttering plywood construction Plywood marineplex plywood plywood
